Getting Started

For clients with an extensive parts/article catalog that may be subject to classification and export control, it is beneficial to establish an electronic data exchange between the client's inventory management system and CU-TA CTC. This serves the efficiency and quality assurance of the company. Efficiency is achieved by eliminating the time-consuming manual entry of article master data into the CU-TA system, as well as the elimination of entering customs-relevant master data in the client's inventory management system. Quality is improved because automated data transfer avoids the typical errors associated with manual maintenance of master data. The organization of the machine-to-machine data exchange in the upload and download process consists of the following essential elements:

Data Exchange Options

There are various technical solutions available for populating CU-TA with the client's article/part master data. Different options are available.

SFTP - Secure File Transfer Protocol

In SFTP communication, a client-specific port is named and set up by CU-TA. This address is used for submitting and retrieving the article master data.

The SFTP Manual is available at SFTP Manual.

Web service

With a web service, the data to be exchanged is defined within a specified communication framework, and continuous updates on the processing status are provided.

Please refer to the API Documentation for detailed information API Documentation.

Web Service - Base URL

https://app.cu-ta.de/api/:prefix/v1

Web Service - Authentication

All API requests require authentication using an API key. Include your API key in the request header:

Authorization: Bearer YOUR_API_KEY

Manual upload

When creating article lists, files can be manually uploaded/downloaded via a web browser.

Interface Description

When uploading, the part or item number is required as a unique assignment criterion; other elements are designation and, in the area of characteristics, particularly helpful specifications that can considerably facilitate the process of classification.

API Access

To manage API access effectively, follow these steps for generating API users and tokens, and handling multiple instances like Test and Live environments.

Managing Multiple Connections

Recommended Method: Seperate API Users

To maintain both Test and Live connections simultaneously, create separate API accounts:

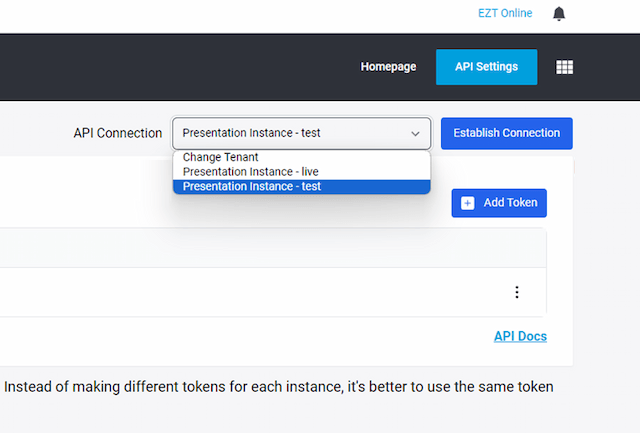

Alternative Method: Switching Connections

User is tied to one connection at a time - so you need to "lock" the connection to the desired instance for example the Test instance.

If you have decided to use a single API user:

Creating API Users & Tokens

First,

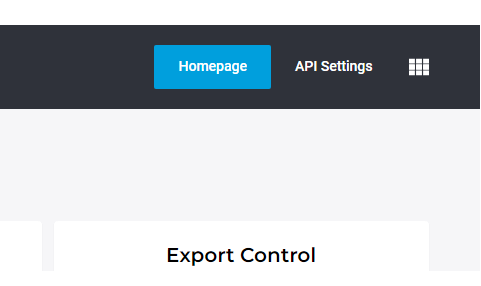

Login

Next

THE "+" indicator

Use a plus sign "+" to distinguish between email addresses for different instances. Notifications for API errors or updates will be sent to both client administrators and users, with the part of the email after the "+" being ignored. Password reset notifications will be sent to these email addresses as well as can be managed by client administrators through the web interface.

Initiate Data Exchange connection

Please choose one of the following resources for further guidance:

Setting Up

Understanding Prefixes

Each account is created with 3 instances (live, training & test), each has a unique prefix.

• Live: For real-time operations.
• Training: For training purposes.
• Test: For IT department tests, such as data exchange tests.

API Access

1. Creating API Users

• TEST e.g. apiuser+test@domain.com
• LIVE e.g. apiuser+live@domain.com

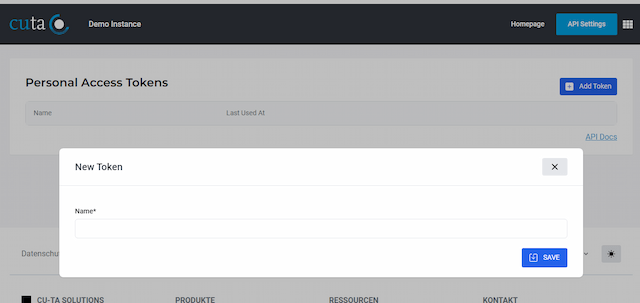

2. Generate Tokens for Each

• Login, Go to the "API Settings" menu at the top right corner and create api tokens for each

User Access

The "+" Indicator

• The "+" sign in email addresses helps distinguish between different instances.
• Notifications and password resets sent to these addresses will be managed appropriately, ignoring the part after the "+".

User Creation

Here are a few important points to know about user creation before we continue:

If you're ready, click and jump to
